Top Selling 30ton Batch Circulating Rice Grain Dryer for Vietnam Rice Milling Plant
Type: batch recirculating grain dryer.
Applications: paddy, wheat, corn, beans, cereals, etc.
Loading Capacity: 20ton to 50ton per batch
Main Features
1. Grain dryer with no screw conveyor design, lower broken rate, running more faster and convenient
2. Paddy drying system with large drying area, multiple channels drying layer, drying more efficient and uniform
3. Automatic drying monitoring system, temperature controlling system, easy for operating
4. Rice dryer with stainless steel material for all parts touching the grains, long service life
5. Wide range of heating options and fuels available, paddy dryer machine with lower drying cost
6. Rice dryer equipement equipped with various safety devices and a simple control panel for easy operate.
| Model | 5HXH-30C |
| Type | Batch circulating |
| Capacity | 30ton per batch |
| Overall Weight | 8700kg |
| Overall Dimension | 2442*3714*13026mm |
| Total Power | 14.32Kw |
| Voltage | 380V,50Hz,3 Phase, can be customized |
| Drying Rate | 0.5%-1.2% per hour |

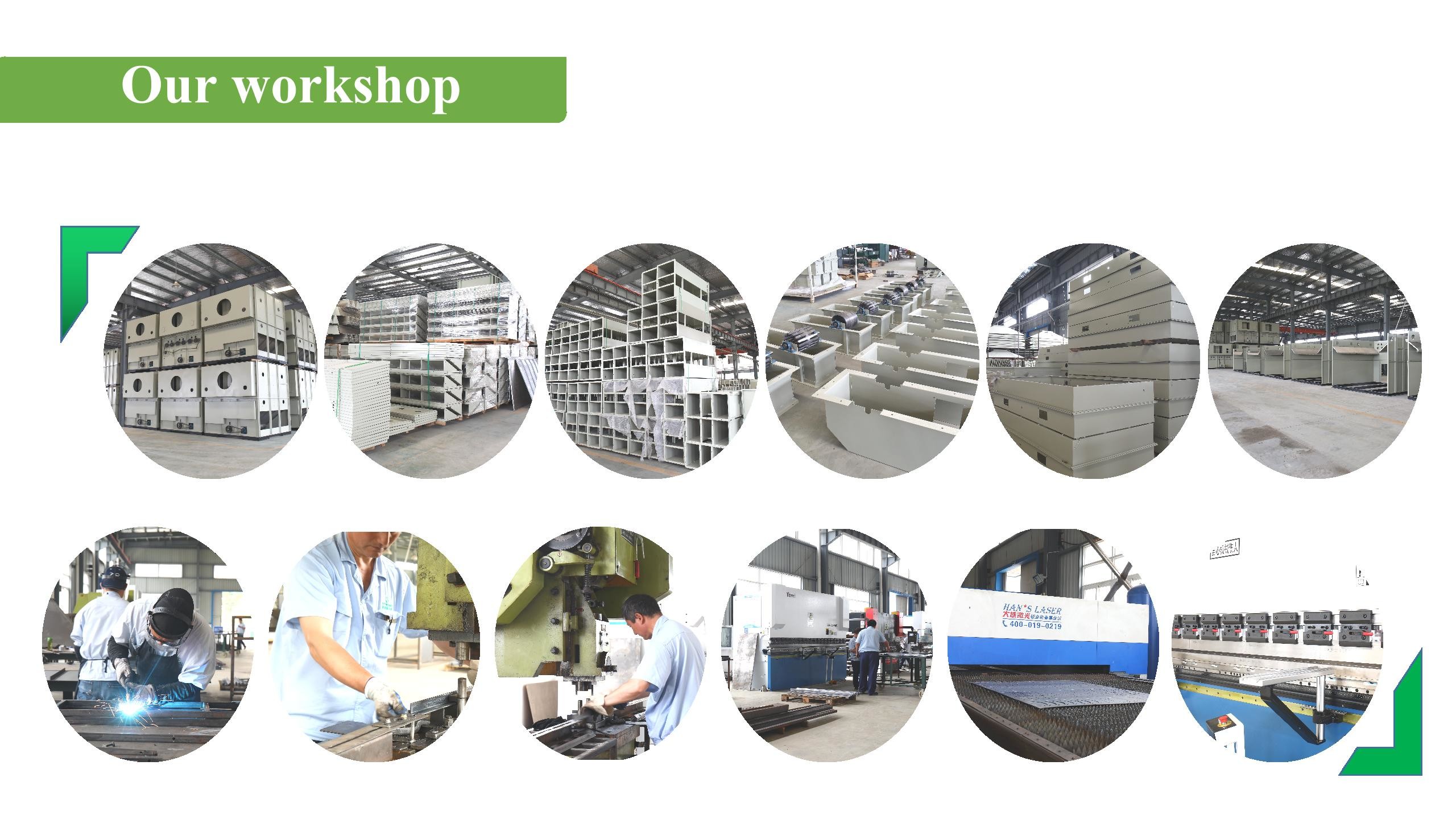

Our Workshop
Patents and Certificate
Our Team
Packing and Delivery

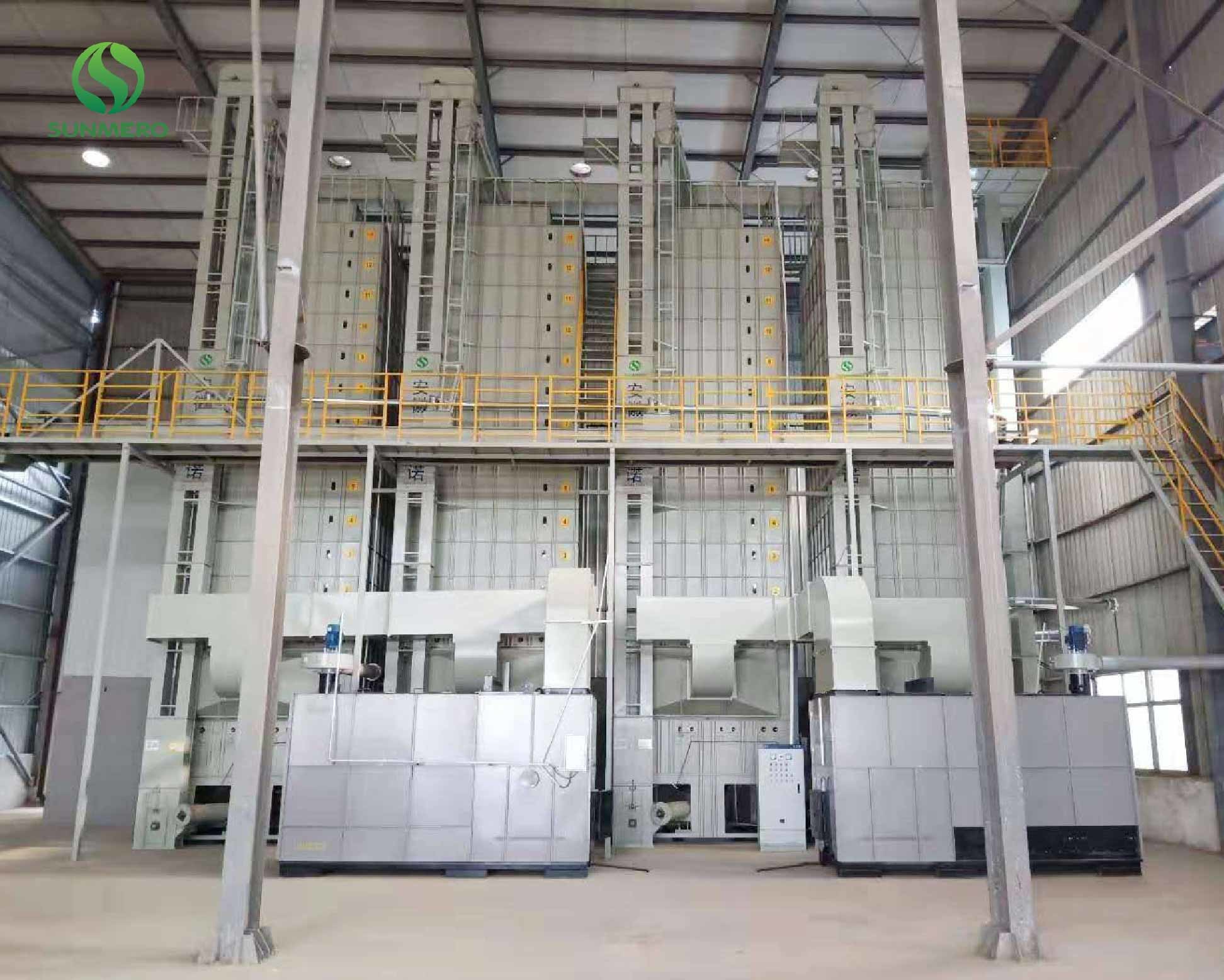

Onsite Projects
FAQ
1. How long have you been in this business?
——We founded in 2014 but grow very fast. Our team members and experts have worked in drying field more than 15 years.
2. What do you think is your biggest advantage?
——We truly consider each customer as top importance and complete each order according to the standard drying project. This greatly helps the customer with convenient service. Many customers invest much to purchase grain dryer machines but fully satisfied. If you have problems with operating, just ask us for help.
3. What is the particular feature of your rice grain dryer machine?
——It adopts a non-auger type which greatly reduces the broken rate and failure rate of a transmission system. Besides, the design of a special larger drying section can increase drying efficiency where customers mostly concerned.
4. What is the material used in your rice grain dryer machine?
——For all parts touching grains, we use Stainless Steel material to increase the wear resistance and service life. This has been proved hundreds times by our end-user customers.
5. What’s the long life of your rice grain dryer machine?
——According to feedbacks from our customers, their machines still run very well, the ones were purchased in 2014, our first products. They also shares that the dryers were maintained regularly as almost well as his car. The factory will help to check the machines before the harvest season and they will clean after running every year.
6. What about the drying time of your rice grain dryer machine?
——Take our China long rice as an example, it will take about 13 hours from 25% to 14% with a temperature of 70℃. Different grains have particular moisture required for milling. And the local environment temperature and hot air temperature will influence the drying efficiency as well. You are welcomed to share your local grains' requirements, and we can give you suitable suggestions from our technicians.
7. How do you ensure your rice grain dryer machine's quality?
——All front-line service engineers are of over 5 years experience. And we import advanced equipment like laser cutting machines. Each component will be checked and tested by professional technicians after production. For example, the motor will have a power-on test before shipment. Please visit our production line when you are available.
